> >>Semi-rigid double wall arm L1600 / 1750mm 3 / 8M output
Semi-rigid double wall arm View larger

Semi-rigid double wall arm L1600 / 1750mm 3 / 8M output

MTM185120

New product

Semi-rigid double swivel arm
Material stainless steel (AISI 304)
Compact R1 rubber hose
Connections: G ¼ F input - G 3/8 M output
Length 1600 + 1750 - 63 "+69"
Vertical wall attachment
Weight 26 kg

More details

1 395,00 € tax excl.

More info

Admissible pressure 21 MPa 3100 psi
Nominal temperature 120 ° C 250 ° F
Rotation angle 180 °

Data sheet

ManufacturerMTM Hydro Kaster Machines

Download

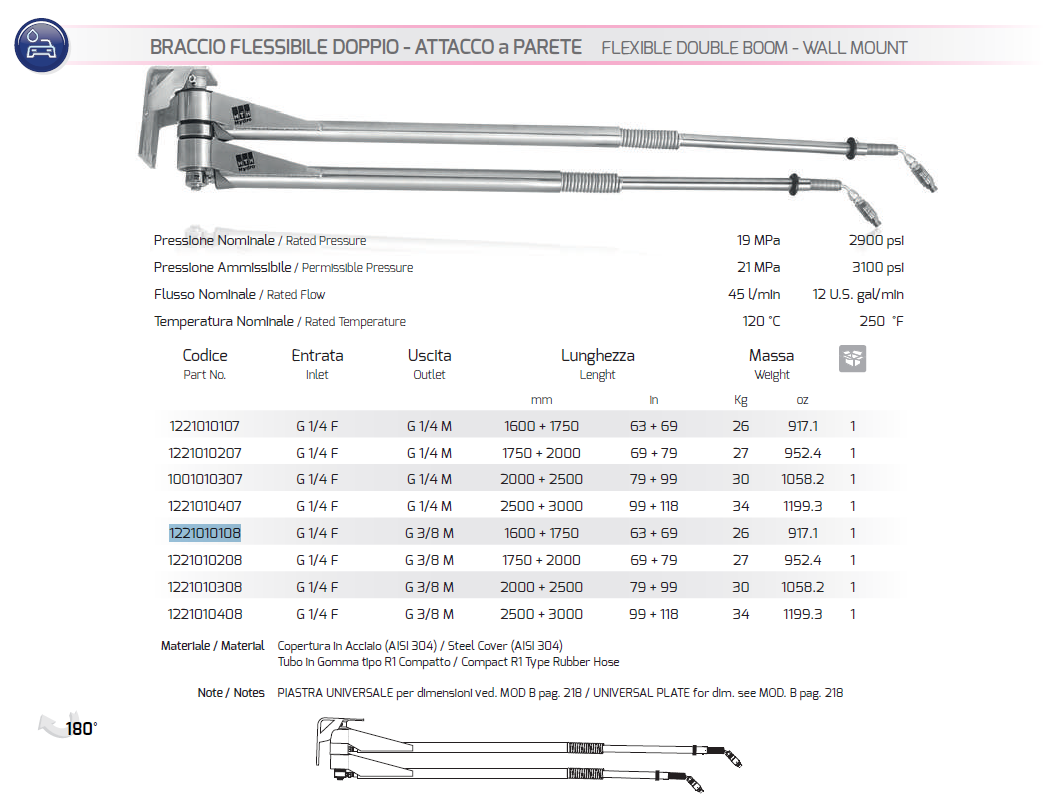

Braccio semirigido a muro doppio

Download (202.44k)

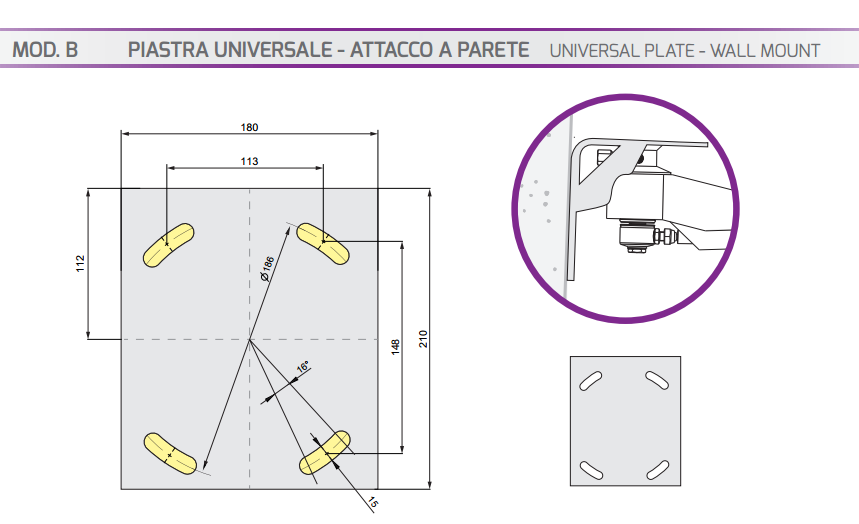

Piastra murale

Download (66.62k)

esploso bracc. doppio

Download (62.87k)
