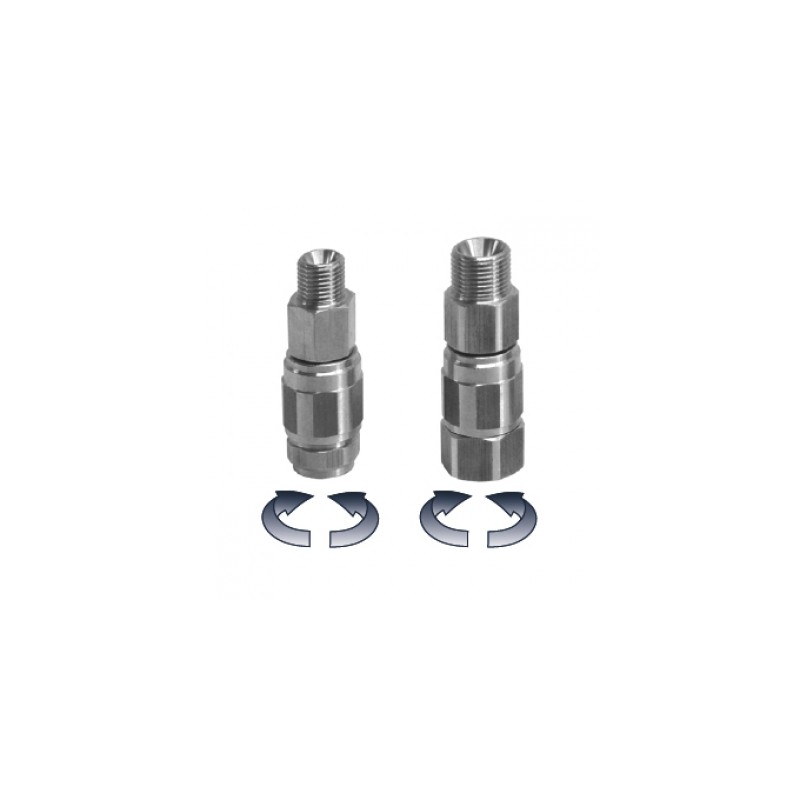

Stainless steel swivel connector View larger

Swivel connector straight INOX 1/4 MF

MC4100800008

New product

Swivel Joint TOP series straight in Stainless Steel 1/4 MF
NOMINAL PRESSURE  360 bar  36 MPa  5200 psi
PERMISSIBLE PRESSURE  400 bar  40 MPa  5800 psi

More details

39,77 € tax excl.

More info

NOMINAL CAPACITY  40 l / min  10.6 USGpm
NOMINAL TEMPERATURE  160 ° C 320 ° F
MATERIAL Stainless Steel
MAXIMUM RPM NUMBER  30 rpm  30 rpm

Data sheet

ManufacturerMecLine

Download

Raccordo Girevole INOX

Download (9.87k)

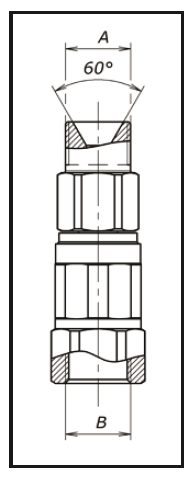

disegno tecnico

Download (26.65k)
