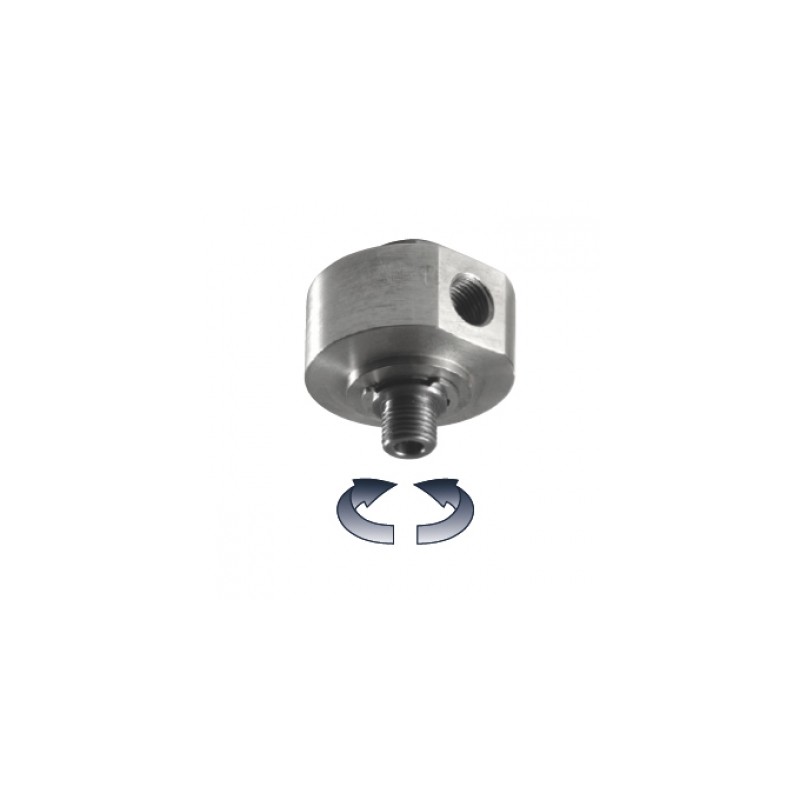

> >Swivel coupling 90 ° Stainless steel 3/8 MF
Swivel coupling View larger

Swivel coupling 90 ° Stainless steel 3/8 MF

MC0212006260

New product

90 ° SWIVEL JOINTS Fittings 3/8 M - 3/8 F
NOMINAL PRESSURE 250 bar 25 MPa 3600 psi
PERMISSIBLE PRESSURE 280 bar 28 MPa 4060 psi

More details

53,26 € tax excl.

More info

NOMINAL CAPACITY 45 l / min 12 USGpm
NOMINAL TEMPERATURE 160 ° C 320 ° F
MATERIAL Stainless steel
MAXIMUM RPM NUMBER 30 rpm 30 rpm

Data sheet

ManufacturerMecLine

Download

Raccordo scheda

Download (19.67k)

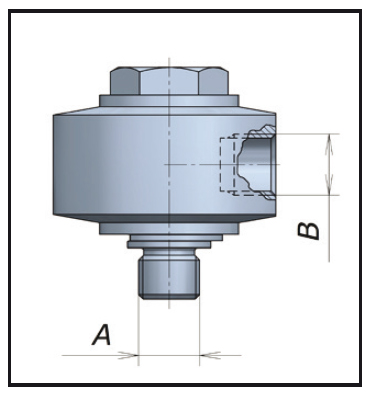

Raccordo disegno

Download (38.74k)
