Wash Barriques Rotosh View larger

Wash Barriques Rotosh

MC394109

New product

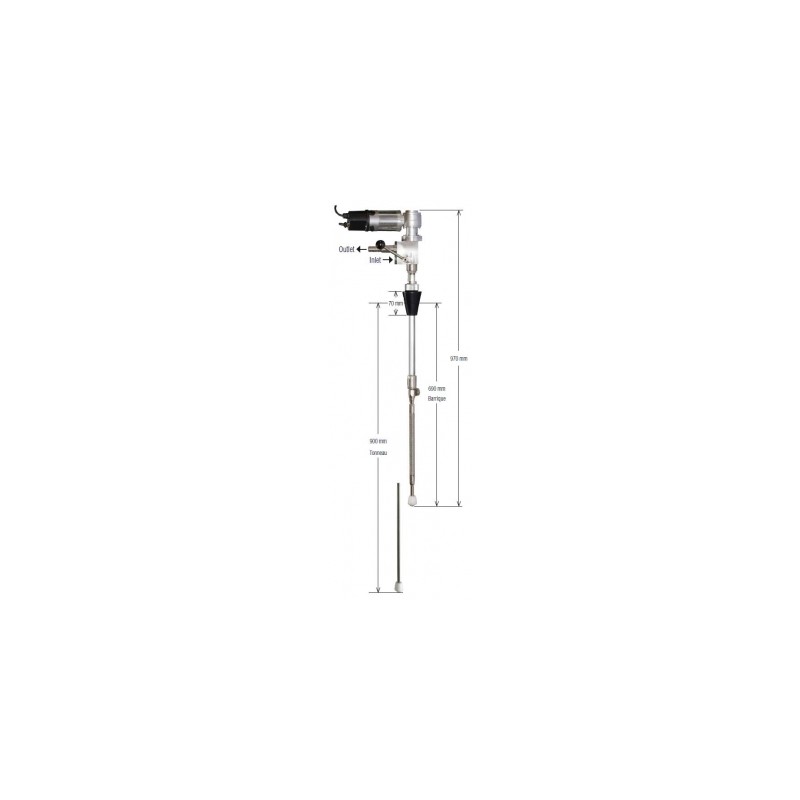

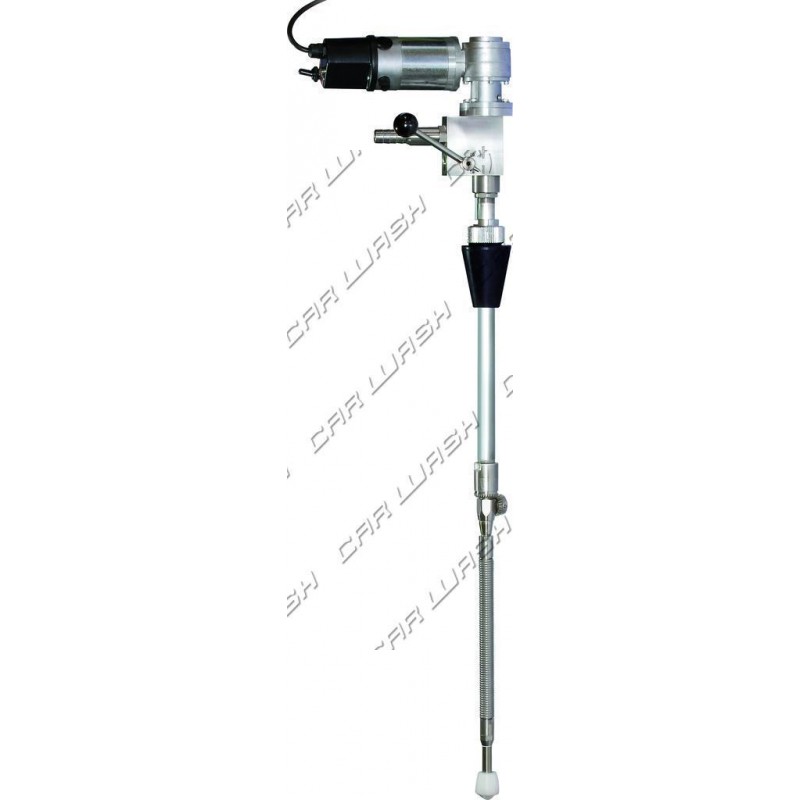

ROTOSH Wash Basin Head

NOMINAL PRESSURE 120 bar 12 MPa 1740 psi
ELIGIBLE PRESSURE 140 bar 14 MPa 2030 psi
NOMINAL RATE 25 l / min 6.6 USGpm
NOMINAL TEMPERATURE 80 ° C 176 ° F

More details

2 115,26 € tax excl.

More info


12 V DC ELECTRIC GEARMOTOR
POWER SUPPLY 230 (50HZ) - 115 (60Hz) V
POWER SUPPLY IP 55
CABLE LENGTH WITH SEALING CONNECTIONS 10 m
ROTATION OF DOOR NOZZLE NOZZLES 52 rpm
MINIMUM DIAMETER HOLE OF PASSAGE 40 mm
Mounted NOZZLES, n ° 2 + 1 pc. for pumps from 10 to 15 l / min - (2.7 ÷ 4 USGpm)
disassembled, n ° 2 + 1 pc. for pumps from 15 to 20 l / min - (4 ÷ 5.3 USGpm)
disassembled, n ° 2 + 1 pc. for pumps from 20 to 25 l / min - (5.3 to 6.7 USGpm)

Data sheet

ManufacturerMecLine

Download

Lava barriques ROTOSH

Download (74.94k)
