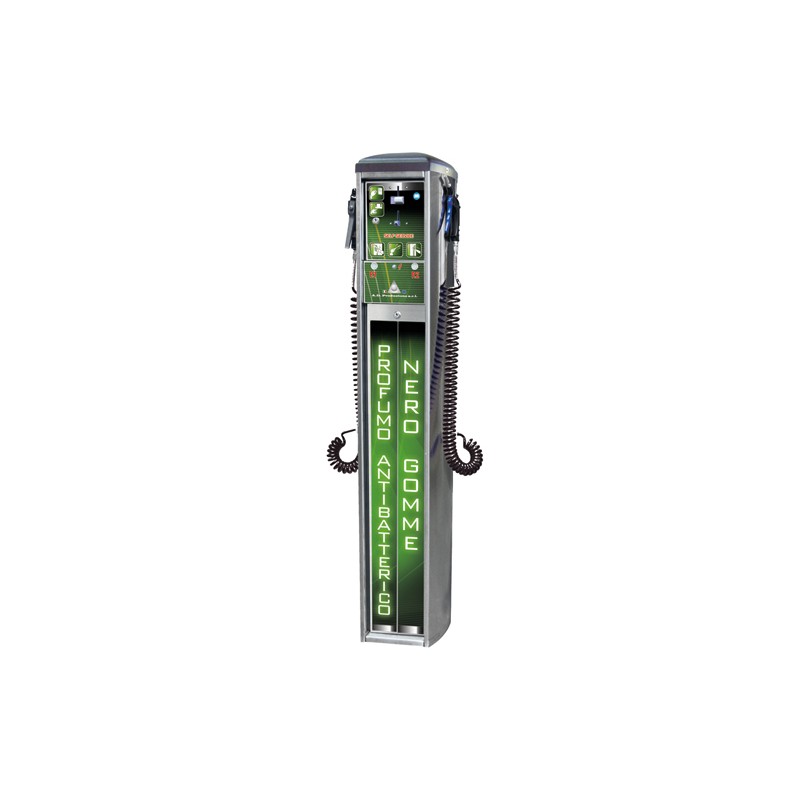

Product dispenser double electronic coin mechanism RM5 220V

The ideal position is next to the vacuum cleaners. The product is pushed by a pump through a circuit, which ends with a nozzle positioned on a pistol grip. The same nebulizes the product giving the possibility of obtaining a uniform result.

OPERATION:
Coin or coin operated. Inserting the token activates the machine and for a preset time it will be possible to spray the product.
N.B. In the double program column, it is possible to switch from one program to another with the same token, even if they have different times; a PLC controls the management of delivery times and automatically adjusts prices.
N.B. For the compressed air program, the air from an external compressor is required. The machine does not include the compressor.

STRUCTURE 304 stainless steel
HAT In black ABS
230 V. VOLTAGE
POWER 200 W
GETTONERIA Electronics
PUMPS Standard
DOORS With simple locks
WEIGHT 25 kg
DIMENSION B 300mm x H 1550mm x W 250mm

OPTIONAL
Eurokey key reader kit next
Manual control kit
Token drawer for coin acceptors
Internal electronic coin mechanism cover
External electronic coin mechanism cover
Safety bar kit
Stainless steel pistol for product
Stainless steel pump
Stainless steel hat

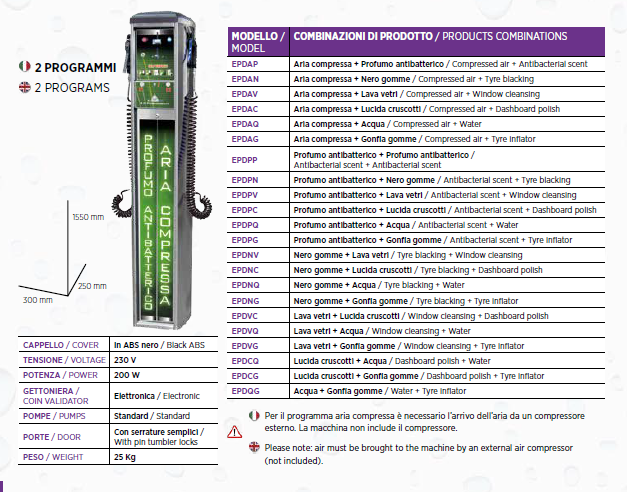

PRODUCT COMBINATION MODEL
EPDAP Compressed air + Antibacterial fragrance
EPDAN Compressed air + Black tires
EPDAV Compressed air + Lava glasses
EPDAC Compressed air + Polished dashboards
EPDAQ Compressed air + Water
EPDAG Compressed air + Tire inflation
EPDPP Antibacterial fragrance + Antibacterial fragrance
EPDPN Antibacterial fragrance + Black rubbers
EPDPV Antibacterial fragrance + Glass wash
EPDPC Antibacterial perfume + Glossy dashboards
EPDPQ Antibacterial perfume + Water
EPDPG Antibacterial perfume + Tire inflation
EPDNV Black tires + Lava glasses
EPDNC Black tires + Glossy dashboards
EPDNQ Black tires + Water
EPDNG Black tires + Tire tires
EPDVC Lava glasses + Glossy dashboards
EPDVQ Lava glasses + Water
EPDVG Window washer + Tire inflation
EPDCQ Glossy dashboards + Water
EPDCG Glossy dashboards + Tire tires
EPDQG Water + Inflates tires

For the compressed air program, the arrival of air from a compressor is required external. The machine does not include the compressor.
