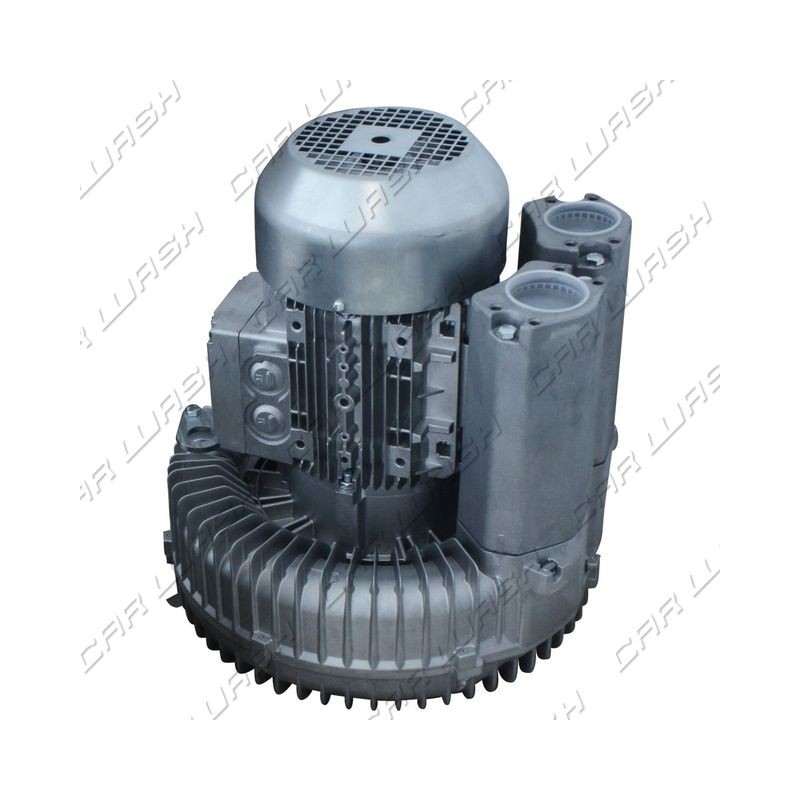

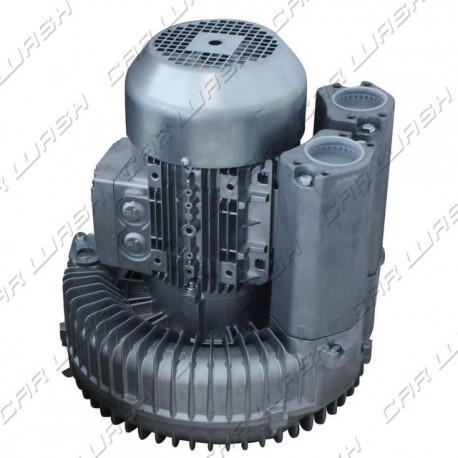

Side channel blower turbine, 1 stage, kW 3.0 V 230-400 / 3 / 50-60Hz, increased flow

The blowers can operate both in a horizontal position and in a vertical position both in compression and in suction.

Principle of operation

The gas is sucked into the chamber by the loading opening 1 When the gas enters the side channel 2 the movement of the impeller 3 transmits a certain speed to the gas in the direction of rotation. The centrifugal force of the impeller blades accelerates the gas towards the outside and the pressure increases. Each rotation increases the kinetic energy, with a further increase in pressure in the side channel. The channel narrows towards the rotor, dragging the gas away from the impeller blades to discharge it through the exhaust silencer 4 and then out of the pump.

• Suction characteristics (50 hz)
• 3.0Kw absorption
• Flow rate: 405 (m3 / h)
• Pressure: 250 (mbar rel.)

• Compression characteristics (50hz)
• 3.0 Kw absorption
• Capacity: 410 (m3 / h)
• Pressure: 300 (mbar rel.)
