> RM5 F21 tropicalized electronic coin acceptor

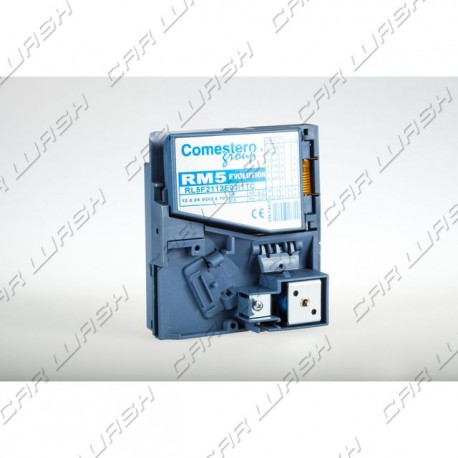

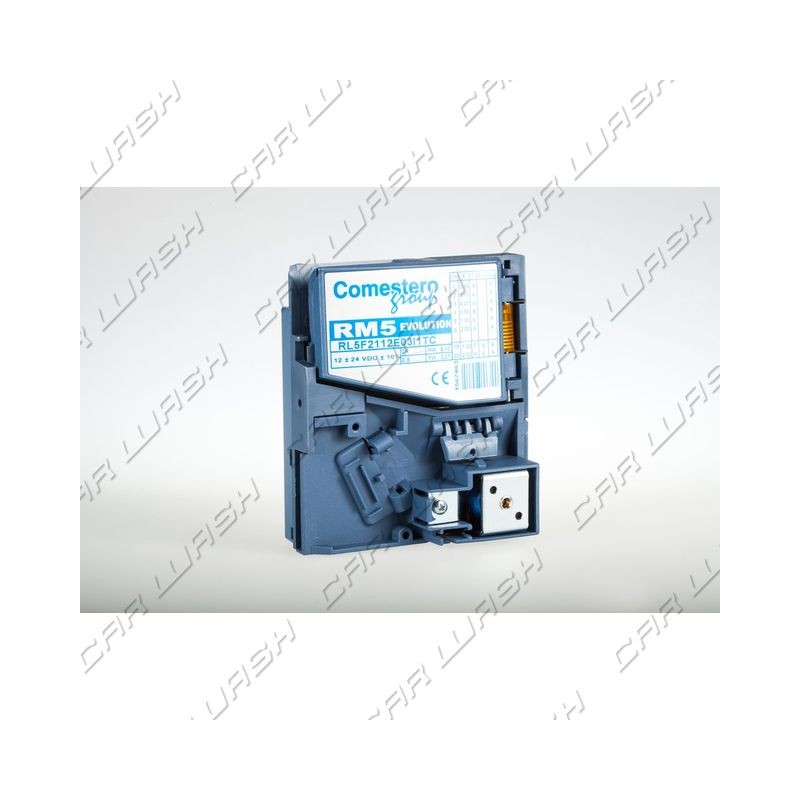

Electronic coin selector RM5 F21 View larger

RM5 F21 tropicalized electronic coin acceptor

CORM5F21

New product

The RM5 Evolution coin validator stands out for its extreme reliability. Its  electronics combine an extraordinary selectivity with a high programming versatility: through the Cloning system it is possible to transfer the configuration parameters from one sample to another.

AVAILABLE AFTER VERIFICATION

More details

150,00 € tax excl.

More info

Features
• 3 pairs of inductive sensors for processing 6 different material and mass parameters
• 3 pairs of optical sensors to recognize the diameter of the coin
• Mechanical and electronic anti-repellent device
• Electronic anti-intrusion device (only for version F)
• Wire shear blades
• Automatic compensation system for optical sensors for changes in temperature, voltage and brightness
• Recognition channels: up to 59, all redirected to outputs. The first 6 support the Self-Prog mode
• Open collector outputs
• Serial interface for external connectivity (portable programmer, PC) to manage calibration, testing and updating of the values ​​and operating parameters tables
• Credit reporting: parallel, binary, impulsive
• Also available in the tropicalized version to withstand environments exposed to atmospheric agents

Data sheet

ManufacturerComestero Group

Download

Gett. elettronica RM5 F21

Download (1.22M)

Gett. elettronica RM5 F21 (1)

Download (396.37k)

Gett. elettronica RM5 F21 (2)

Download (362.03k)
