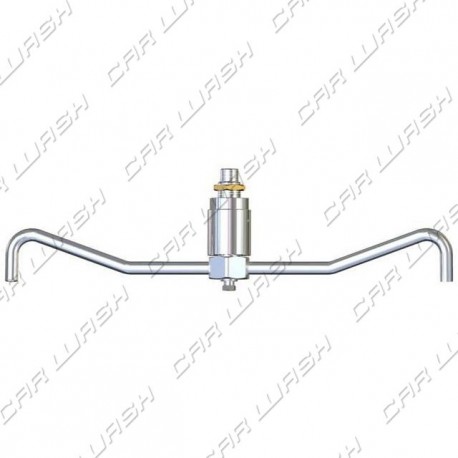

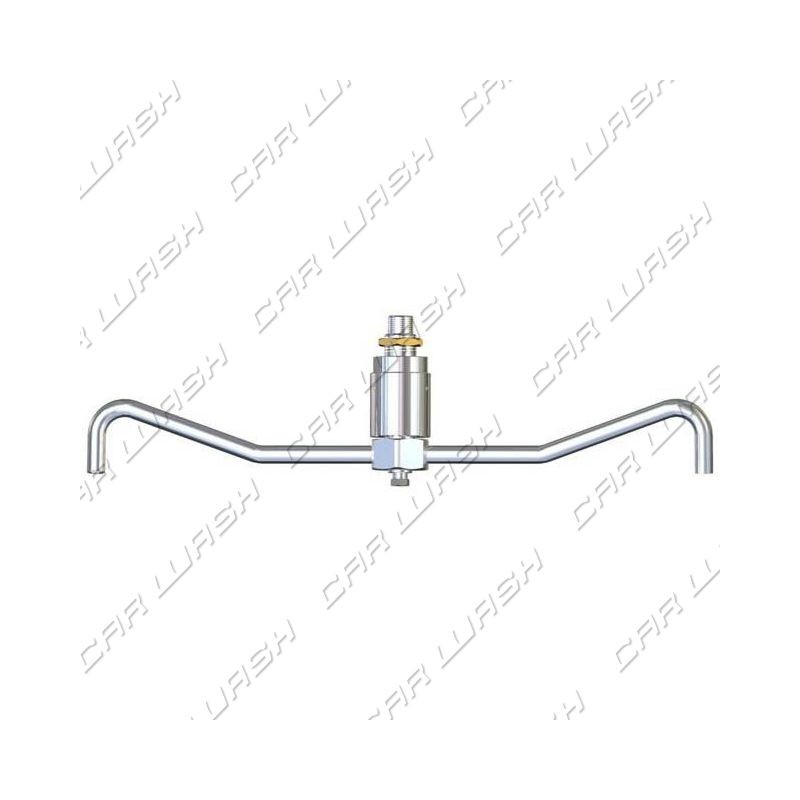

> >>GR 38/200 Rotating nozzle head
GR 38/200 Rotating nozzle head View larger

GR 38/200 Rotating nozzle head

PA26.1420.00

New product

Construction in nickel-plated brass, stainless steel arms. Frontal rotating seals in high resistance ceramic material. Axial forces balance to minimize wear. Rotation on stainless steel ball bearings. Ball bearings protected against water infiltration. High performance and long life. Number and length of the arms variable on request

More details

285,00 € tax excl.

More info

Width 210 mm - 8.26 in
Entry G 3/8 M
Output 2 × 1/8 Npt F
Mass 759 gr - 26.77 oz

Nominal pressure 350 bar - 35 MPa - 5100 psi
Permitted pressure 390 bar - 39 MPa - 5650 psi
Nominal flow 40 l / min - 10.5 USGpm
Nominal temperature 120 ° C - 250 ° F
Maximum working temperature 0-90 ° C - 32-195 ° F

Data sheet

ManufacturerPA

Download

GR 38/200 Testina Portaugelli

Download (998.53k)
