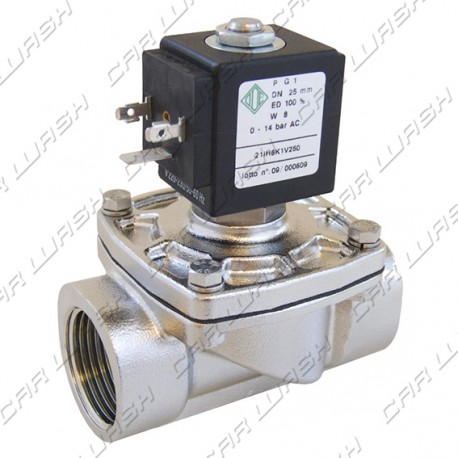

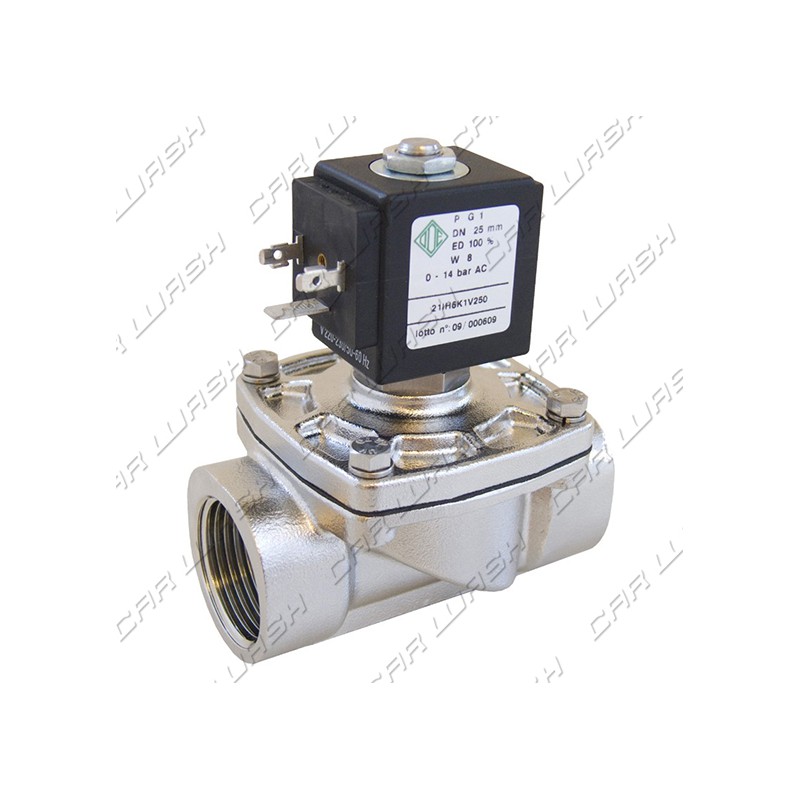

> >>ODE 2-way solenoid valve body 1/2 '' INOX - Viton + stainless steel passage 16
ODE 2-way solenoid valve 1/2 '' INOX Viton+stainless steel passage 16 View larger

ODE 2-way solenoid valve body 1/2 '' INOX - Viton + stainless steel passage 16

ODE4 INOX

New product

solenoid valve with indirect action suitable for interception of fluids
compatibli with the construction materials.
A minimum operating pressure of 0.5 bar is required.
The materials used and the tests performed guarantee
reliability and durability.

More details

191,40 € tax excl.

More info

Connections G ½
Material 316 Stainless Steel AISI
Type Solenoid valves General Applications
Functionality 2-Way Indirect Drive
Flow rate Kv (l / min) 35, 120, 130, 160
Pressure (M.O.P.D.) up to 20 bar

Applications: Water, Air, Car Wash, Chemistry, Food & Beverage, Bottling, Industrial Washing, Medical, Water Treatment, Steam

Body AISI 316 stainless steel
AISI 300 series stainless steel tube
Fixed core AISI 400 series stainless steel
Mobile core AISI 400 series stainless steel
Phase-shift ring Golden copper
AISI 300 series stainless steel spring
Shutter T = PTFE
Port AISI 316 stainless steel

Data sheet

ManufacturerOde

Download

Corpo elettrov. ODE 2 1/2'' INOX

Download (133.26k)
