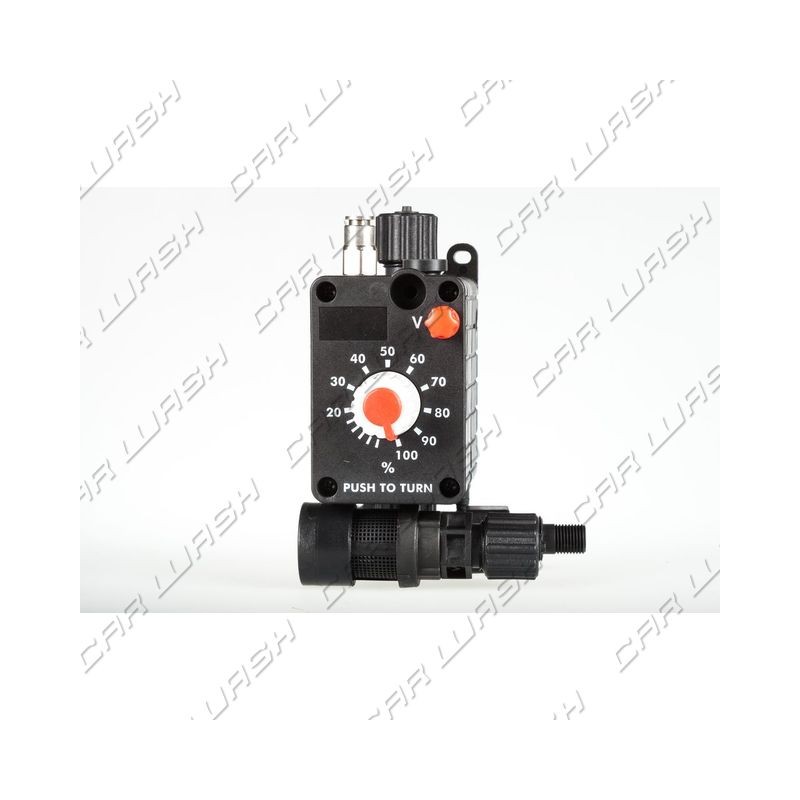

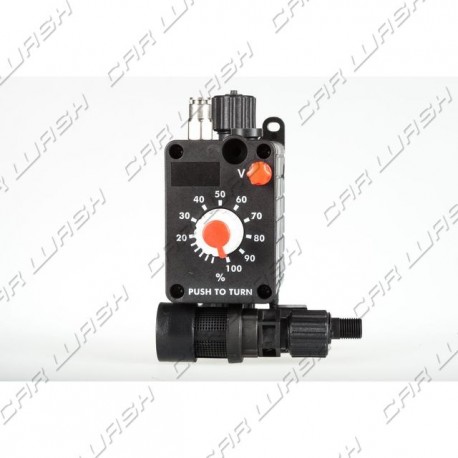

Pneumatic dosing pump 3 l / h 6 bar (viton-inox)

It requires compressed air without lubricant and condensation water and the supply air pressure must be between 6 and 8 bar. It is equipped with pneumatic type flow control, double ceramic or stainless steel valves, PP hydraulic parts and PTFE membrane.
It can be installed horizontally (by support) or on a wall (DIN bar).
The RAC is at constant dosing.

FEATURES
Horizontal mounting
Compressed air pump
Pneumatic type flow regulation
Supply pressure: 6 ÷ 10 bar
Max injections per minute: 120
Working temperature: 0 ÷ 50 C °
Hydraulic parts in PP
PTFE membrane
Wall mounting with DIN bar
Valves with double ball in ceramic or stainless steel

ACCESSORIES
foot valve / filter in PVDF
2 meters of suction hose (flexible PVC)
