> >>Dosatron DI 25 capacity 2.5 m2 / h reg 3% - 10%
Dosatron DI 25 View larger

Dosatron DI 25 capacity 2.5 m2 / h reg 3% - 10%

DDI25RE310

New product

Installed in the water network, the DOSATRON uses water pressure as the sole driving force. In this way, it sucks the concentrated product, doses it to the desired percentage, homogenises it in its mixing chamber with the motive water.

More details

1 115,50 € tax excl.

More info

The solution created is thus sent out of the dispenser.
The dose of injected product is always proportional to the volume of water passing through the DOSATRON, regardless of changes in flow rate or pressure.

FEATURES:

  • Dosing range 3- 10%
  • Water flow rate 10 l / h - 2.5 m3 / h
  • Working water pressure 0.3 - 4 bar
  • Material Body pump PP
  • AF seals material
  • Ordi ’’ fittings

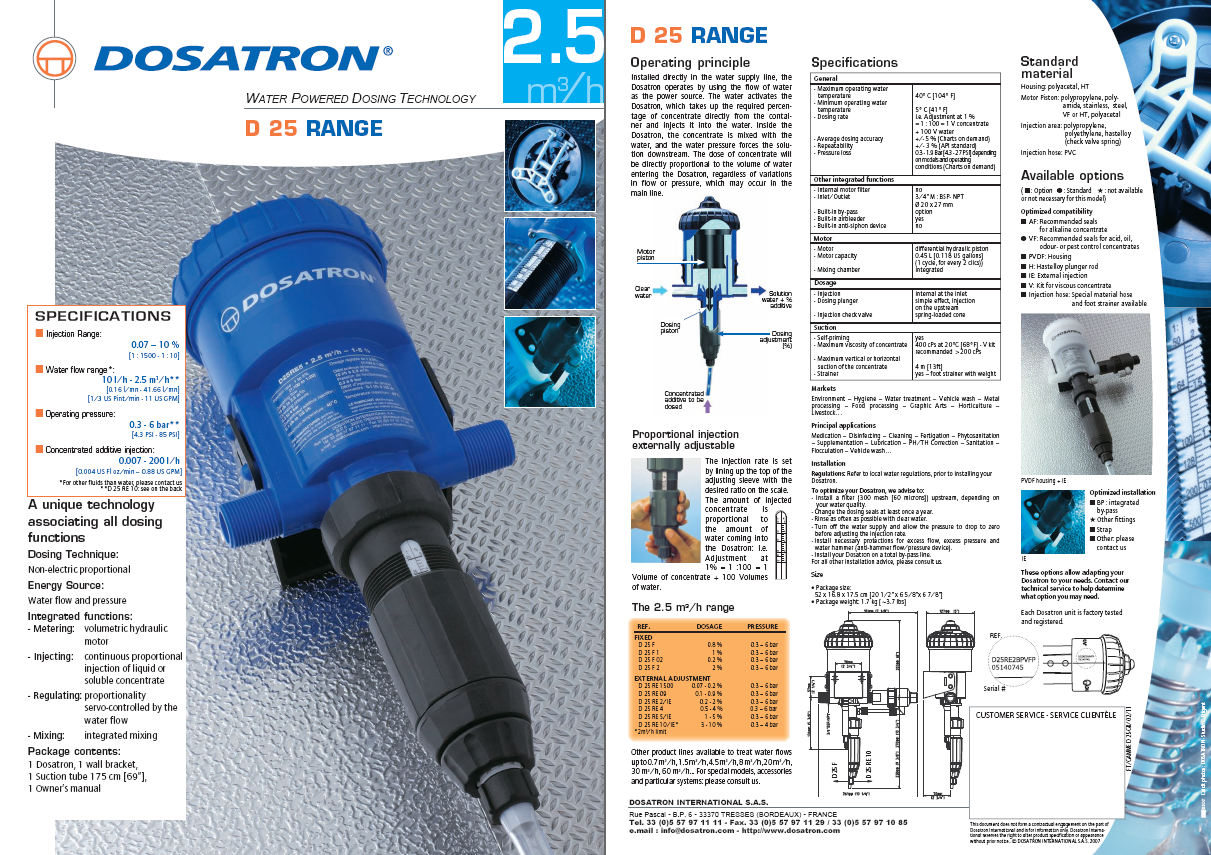

Data sheet

ManufacturerDosatron

Download

Dosatron DI 25 portata 2.5 mq/h

Download (1.11M)
