> >>Pneumatic dosing pump 12 l / h 6 bar (viton-inox) with 24v solenoid valve c.a.
Pneumatic pump 12 l / h 6 bar View larger

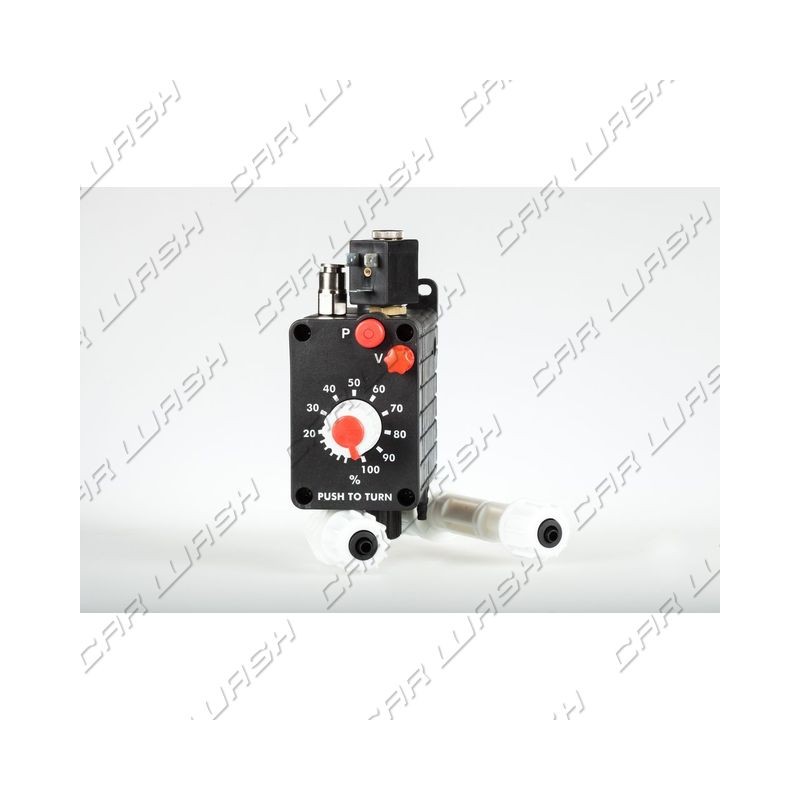

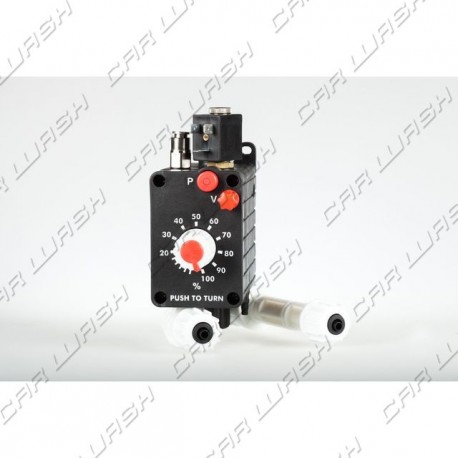

Pneumatic dosing pump 12 l / h 6 bar (viton-inox) with 24v solenoid valve c.a.

EMRACV 126 24CA

New product

Electromagnetic dosing pump with constant dosage and compressed air with 24 Vac electrovalve.

Flow rate 12 liters / h
Working pressure 6 bar
Seal material (viton-inox)

The RAC V compressed air electromagnetic dosing pump is the ideal solution for specific needs such as car washing.

More details

195,33 € tax excl.

More info

It requires compressed air without lubricant and condensation water and the supply air pressure must be between 6 and 8 bar. It is equipped with pneumatic type flow control, double ceramic or stainless steel valves, PP hydraulic parts and PTFE membrane.
It can be installed horizontally (by support) or on a wall (DIN bar).
The RACV is at constant dosing and has an electrovalve.

FEATURES
Horizontal mounting
Compressed air pump
Pneumatic type flow regulation
Supply pressure: 6 ÷ 10 bar
Max injections per minute: 120
Working temperature: 0 ÷ 50 C °
Hydraulic parts in PP
PTFE membrane
Wall mounting with DIN bar
Valves with double ball in ceramic or stainless steel

ACCESSORIES
foot valve / filter in PVDF
2 meters of suction hose (flexible PVC)

Data sheet

ManufacturerEmec

Download

Pompa pneumatica 12 l/h 6 bar

Download (813.03k)
