> >>ODE 2 ways 1/4 "PLUS brass solenoid valve body

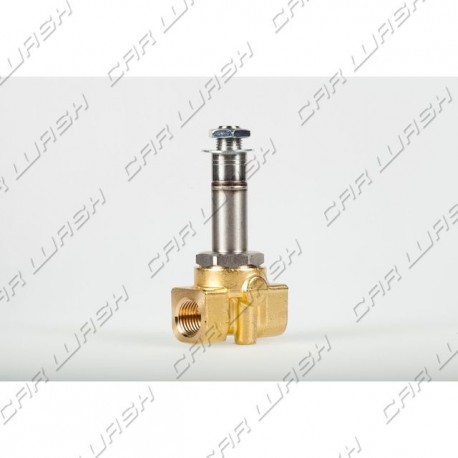

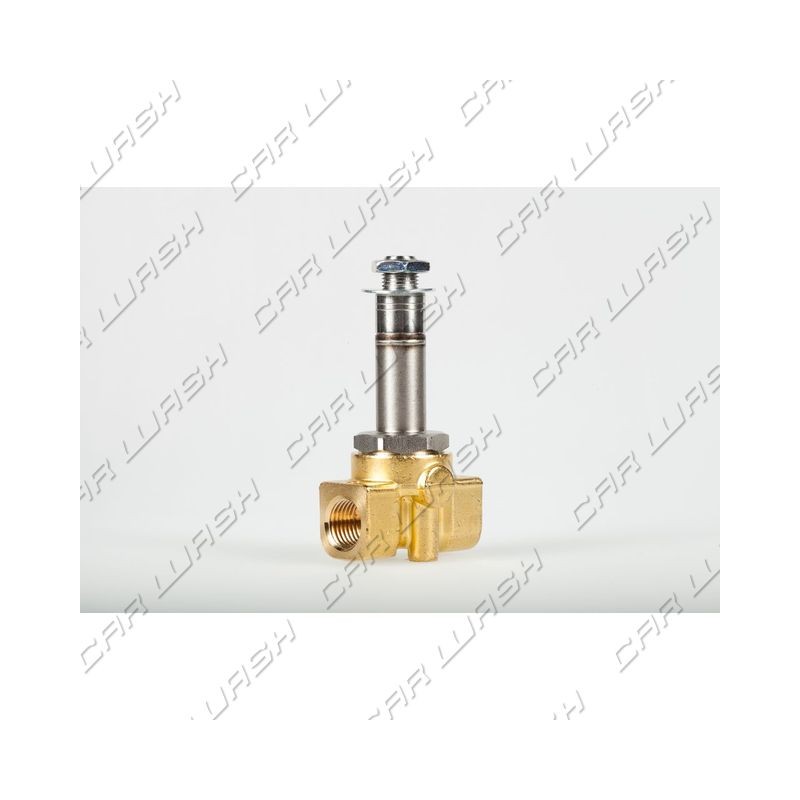

ODE 2 way 1/4 "solenoid valve body View larger

ODE 2 ways 1/4 "PLUS brass solenoid valve body

ODE2PLUS

New product

Direct acting solenoid valve suitable for interception of fluids compatible with construction materials.
Minimum operating pressure is not required.
The materials used and the tests performed guarantee reliability and durability

Functionality 2 Way Direct Drive, N.C., N.A.
Connections G 1/4
Brass material, low food lead brass
Flow rate Kv (l / min) 0.4, 0.45, 1.4, 2, 3.2, 4, 6.5, 9

More details

44,00 € tax excl.

More info

Applications: Water, Air, Car Wash, Industrial Automation, Compressors, Combustible Gases, Industrial Washing, Coffee Machines, Packaging, Thermoregulation, Water Treatment, Steam, Vending
NSF Certification

Brass body - UNI EN 12165 CW617N
Welded sleeve AISI 300 + series stainless steel
Brass - UNI EN 12165 CW617N
Fixed core AISI 400 series stainless steel
Mobile core AISI 400 series stainless steel
Copper displacement ring - Cu 99.9%
AISI 300 series stainless steel spring
Standard Shutter: V = FKM
On request: B = NBR
Port:
<3 mm Registered Seat AISI 300 series stainless steel
> 3 mm Brass - UNI EN 12165 CW617N

Data sheet

ManufacturerOde

Download

Corpo elettrovalvola ODE 2 Plus

Download (101.18k)
