> >>Kit 28 high pressure low pressure for 1 piston
Kit 28 high pressure low pressure View larger

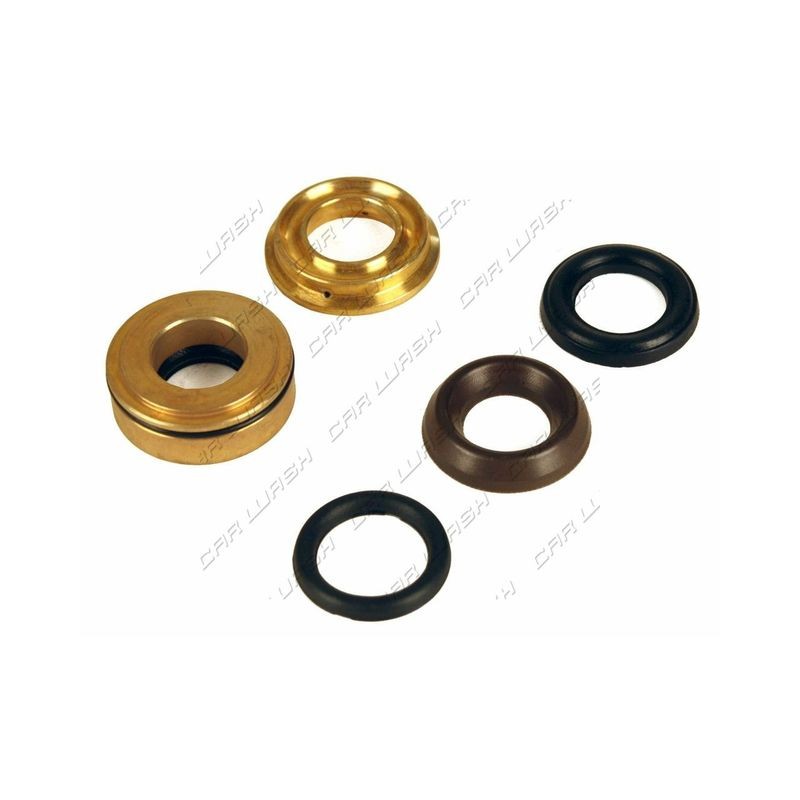

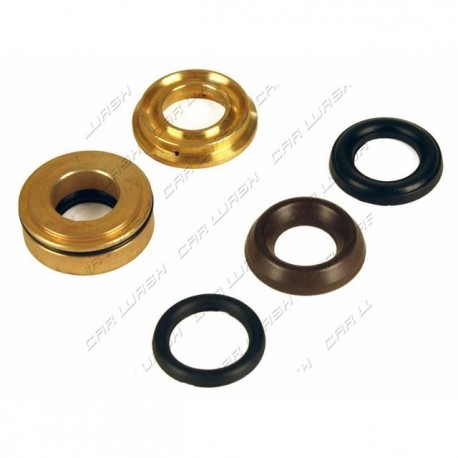

Kit 28 high pressure low pressure for 1 piston

IGKIT28

New product

Repair kit for InterPump Group pumps
Kit No. 28 (for 1 piston)

More details

51,00 € tax excl.

More info

Bottom ring diameter 20 mm
High pressure sealing ring, diameter 20 mm
Head ring diameter 20 mm
Intermediate ring diameter 20 mm
Ring restop diameter 20 mm
Low sealing ring, diameter 20mm
OR diameter 34.65x1.78mm

Data sheet

ManufacturerInterpump Group

Download

Kit 28: tenuta alta/bassa pres.

Download (410.25k)

Kit 28 tenuta alta/bassa pr. (1)

Download (188.86k)
